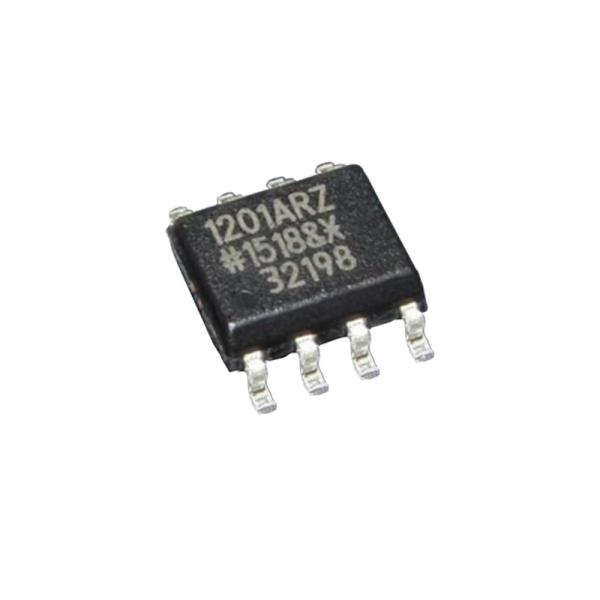

ADUM1201ARZ 10mA SOIC-8 Dual Channel Digital Isolator

Product Categories

Shenzhen Toptoday Network Co., Ltd.

Contact Now

Brand Name : AD

Model Number : ADUM1201ARZ

Place of Origin : Guangdong, China

MOQ : Negotiable

Brand name : AD

Voltage - Output (Min/Fixed) : 5V

Current - Output : 10mA

Operating Temperature : -40°C ~ 105°C (TA)

Voltage - Input : 2.7V ~ 5.5 V

Supplier Device Package : 8-SOIC

Price : Negotiable

Contact Now

AD chip ADUM1201ARZ integrated circuit IC SOIC-8 dual channel digital isolator

Characteristic:

Package	Tube
Part Status	Active
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	No
Inputs - Side 1/Side 2	1/1
Channel Type	Unidirectional
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Data Rate	1Mbps
Propagation Delay tpLH / tpHL (Max)	150ns, 150ns
Pulse Width Distortion (Max)	40ns
Rise / Fall Time (Typ)	10ns, 10ns
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Number of Channels	2

Product Description:

ADUM1201ARZ
High Quality IC 1201ARZ DGTL ISO 2.5KV GEN PURP 8SOIC ADUM1201ARZ
Part Number	ADUM1201ARZ
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	2
Inputs - Side 1/Side 2	1/1
Channel Type	Unidirectional
Voltage - Isolation	2500Vrms
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC

ADUM1201ARZ 10mA SOIC-8 Dual Channel Digital Isolator

Product Tags:

SOIC-8 Dual Channel Digital Isolator
